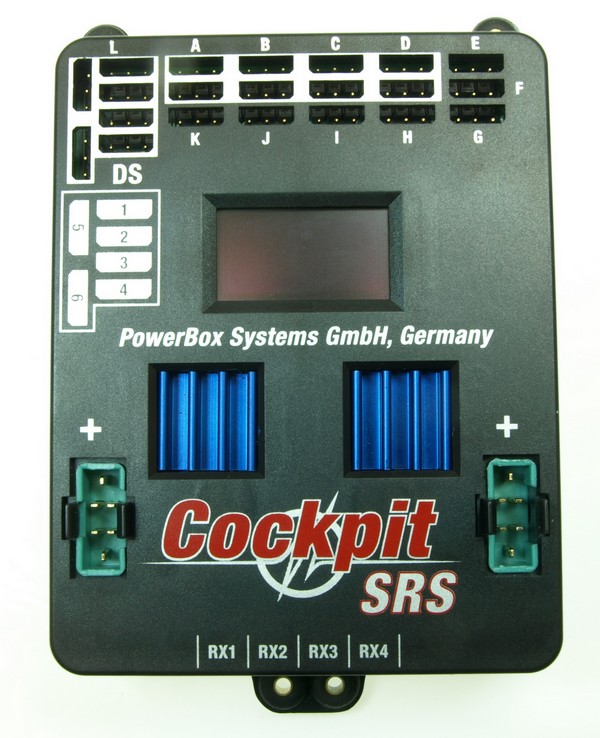

- SRS - Serial Receiver System provides the ability to use receivers with a serial interface, such as those made by Spektrum DSM2 and DSMX, Multiplex M-LINK, Futaba S-BUS and Jeti R_SAT.
- Unrestricted channel assignment of the PowerBox outputs
- Integral high-resolution graphic OLED screen with 128 x 64 pixels
- Particularly user-friendly menu-based programming using the SensorSwitch
- Signal amplification and interference suppression for 14 channels and 18 servos
- Synchronised servo output for totally synchronous servo response
- Flight recorder: records Lost Frames and Fail-Safe periods for all receivers connected to the backer
- Variable frame rate, range 12 ms - 21 ms
- 16-bit processor for fast, high-resolution signal processing
- Four match-channels, each for two servos. Accurate adjustment of all eight servos
- Double regulated output voltage for receivers and servos
- Can be connected to Spektrum and Multiplex MSB downlink channel bus systems
- Direct transmission of battery voltages and capacities to the transmitter
- Separate voltage and capacity displays for each battery
- Software-selectable servo voltage: 5.9 V or 7.4 V
- Minimum value memory displays any voltage collapses
- Large-area heat-sinks for high regulator power
- Regulator monitor, regulator malfunction indicator
- Support for three battery types: LiPo, NiMH / NiCd, LiFePo
- Suppresses any servo feedback currents which might develop
Specification:
- Operating voltage: 4,0 Volts to 9,0 Volts
- Power source:
2 x two-cell LiPO batteries 7,4 Volts
2 x five-cell NiCd or. NiMH batteries
2 x two-cell LiFePo batteries (A123)
- Current drain:
switched on - approx. 125 mA
switched off - approx. 33 µA
- Dropout voltage: approx. 0.25 V
- Max. receiver and servo current:
2 x 10 A (stabilised) according to cooling , Peak 2 x 20 A
Servo signal resolution: 0.5 µs
- Servo signal resolution: 0,5µs
- Signal repeat rate:
12 ms, 15 ms, 18 ms, 21 ms (frame rate)
- Screen: OLED 128 x 64 pixels, graphic
- Servo sockets: 18Sockets, 14 channel
- Temperature range: - 30 °C to + 75 °C
- Weight: 115 g
- SensorSwitch: 15 g
- EMV approval: EN 55014-1:2006
- CE approval: 2004/108/EG
- WEEE Reg. No.: DE 639 766 11
| | |
